Creating a Virtual Hogwarts via 3D Scanning

Driven by the passion for the wizarding world created by J.K. Rowling, 3DeVOK decided to 3D scan an action figure of Harry Potter. The real time-consuming part of this project for our experienced application engineer is the post-processing of the 3D scan data.

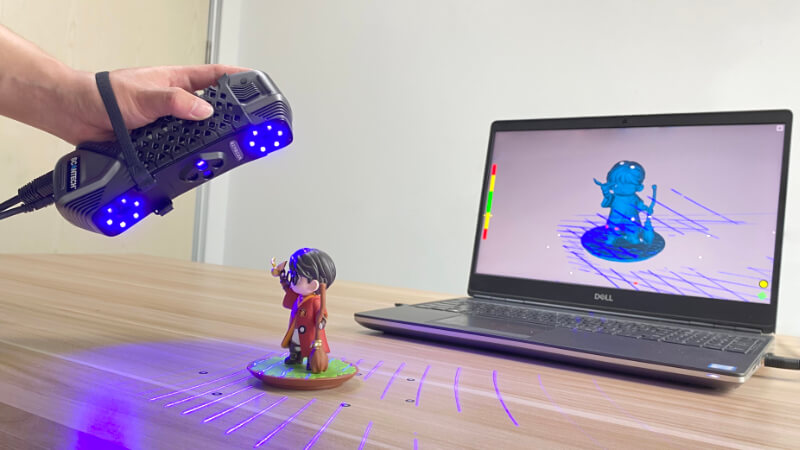

3D scanning the action figure

● Product Model: SIMSCAN 3D Scanner
● Product Type: Metrology-grade Blue Laser 3D Scanner
● Brand: Scantech

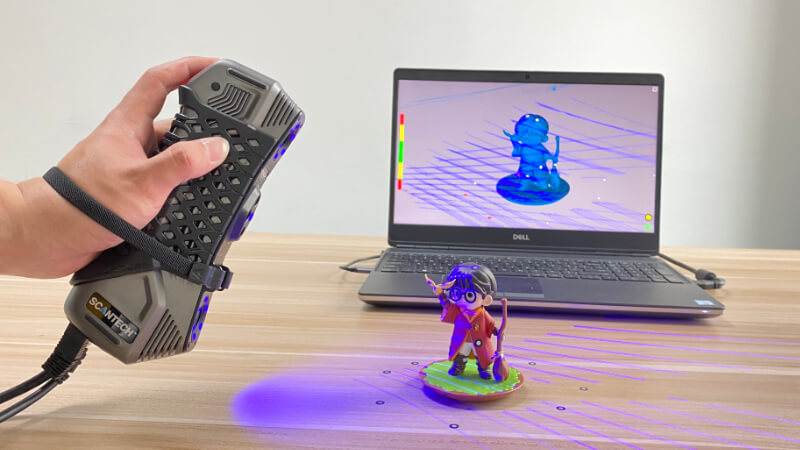

As a metrology-grade 3D laser scanner, SIMSCAN can easily capture the highly accurate three-dimensional data of the Harry Potter toy. Before scanning, stick some marker stickers around the toy to help with the alignment, within a couple of minutes, the complete 3D data of the toy can be collected.

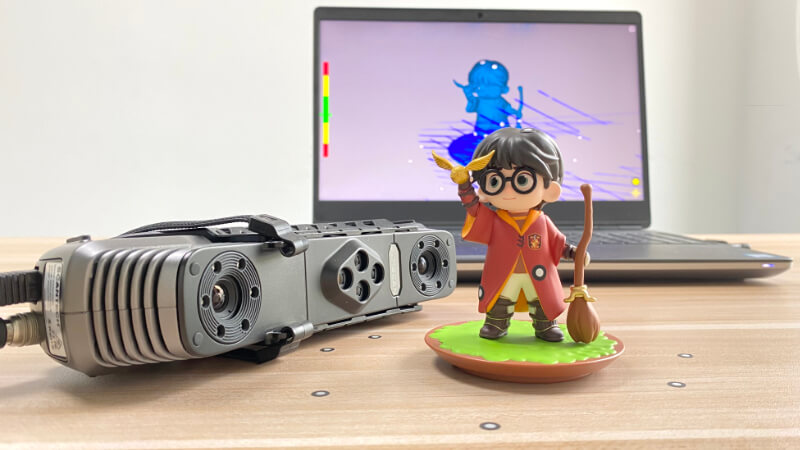

SIMSCAN: Accuracy is up to 0.02 mm

Post-processing of the 3D scan data

With the highest accuracy of 0.02 mm, capturing complete and accurate 3D data of the toy for SIMSCAN is easy. “I wanted to create a 3D figure that people can feel like they are truly in the wizarding world with Harry Potter, so I started my work on Blender.” said by Will Ma, an experienced application engineer from iReal 3D.

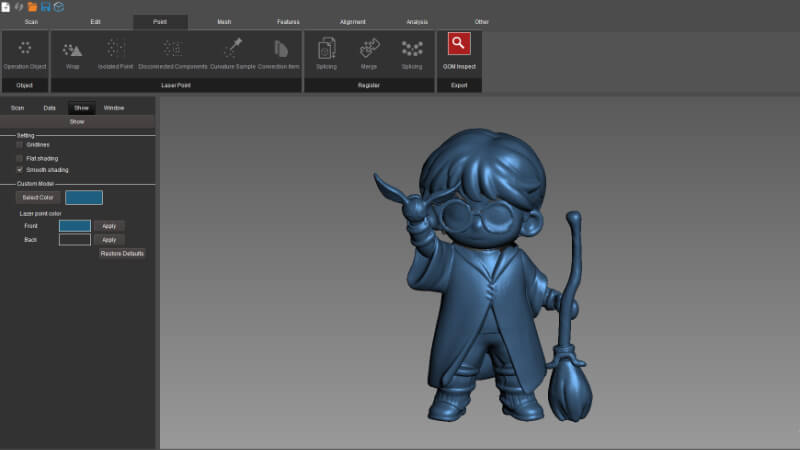

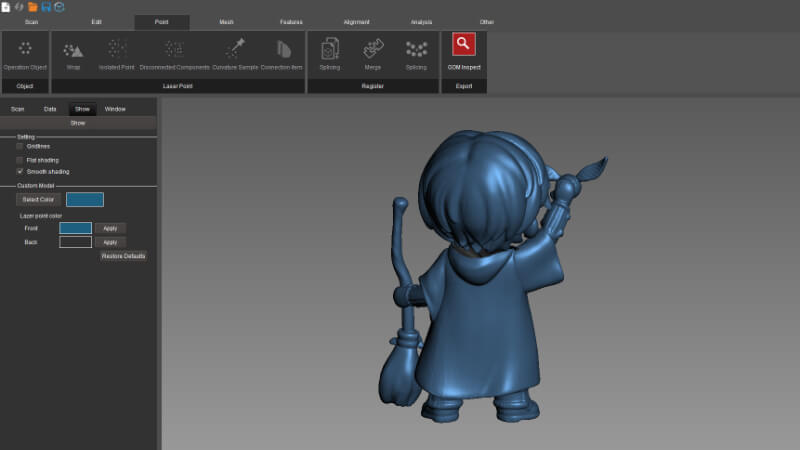

Step one: Import the STL file to Blender

Step two: Unfold the UV

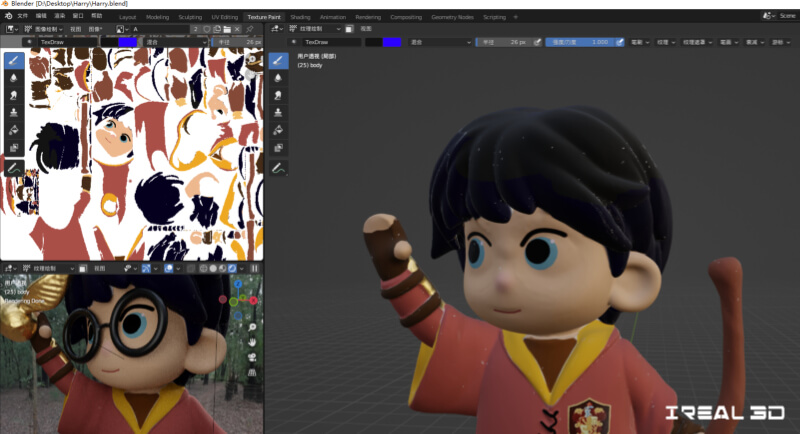

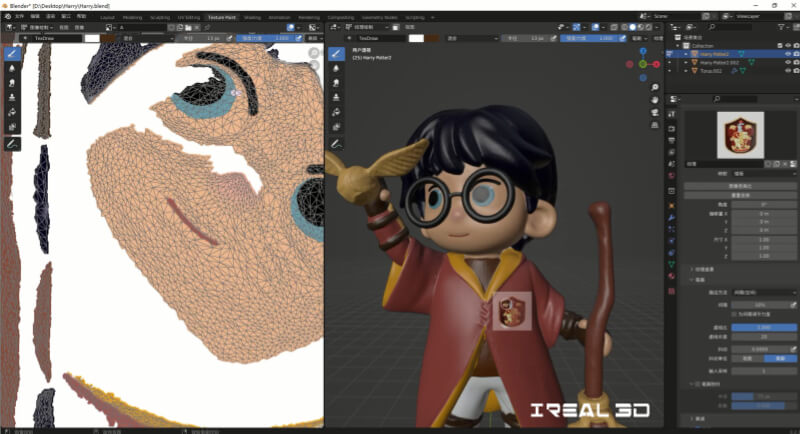

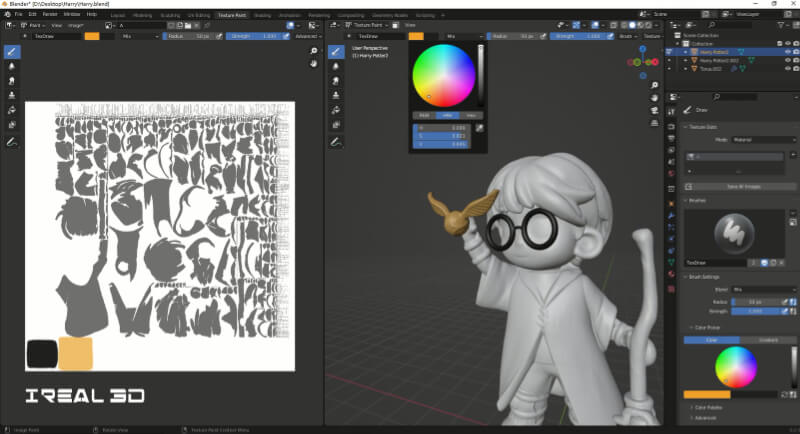

Step three: 3D mapping

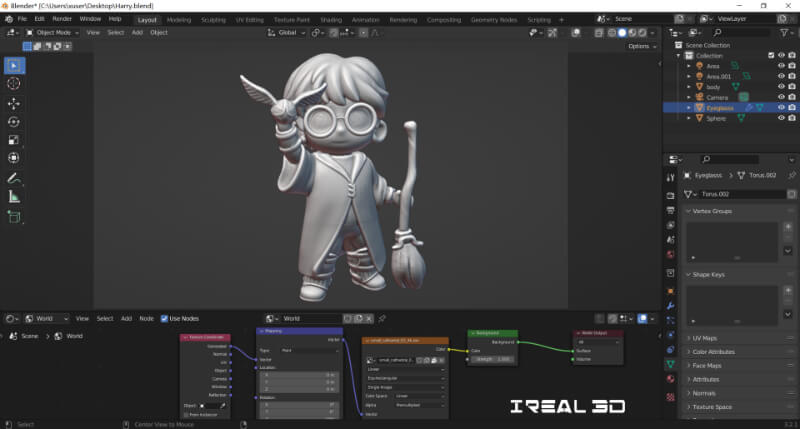

Step four: 3D model optimization

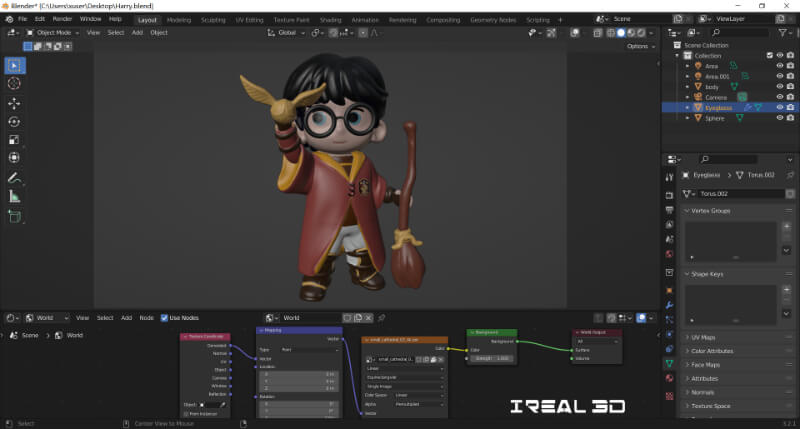

Step five: Rendering

The 3D scanning technology is supposed to bring more fun to life, and 3D digitizing the world we see. At 3DeVOK, we believe everything you see in life, there is a way to 3D digitize it.
